RhinoStop TruckGuard

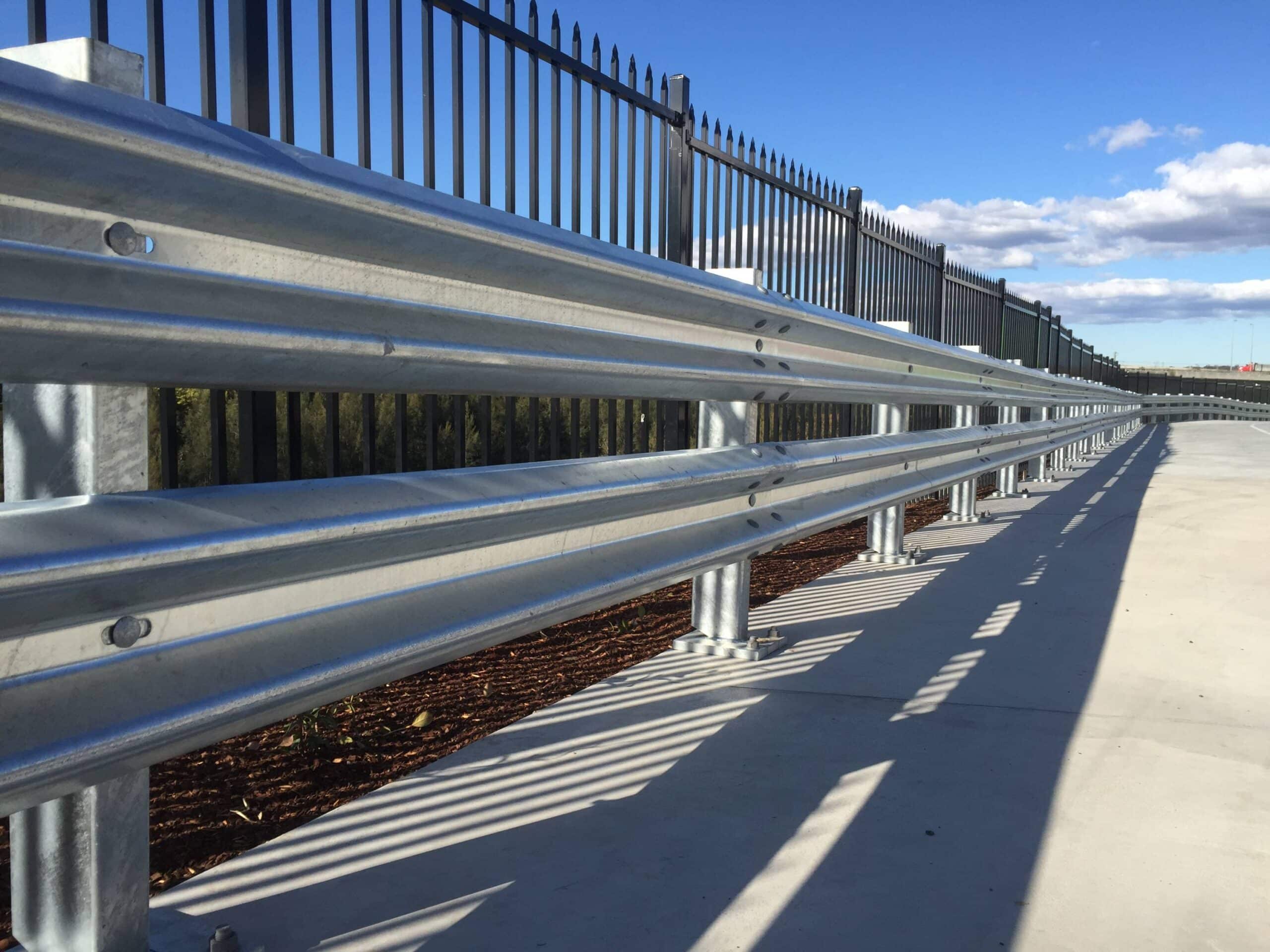

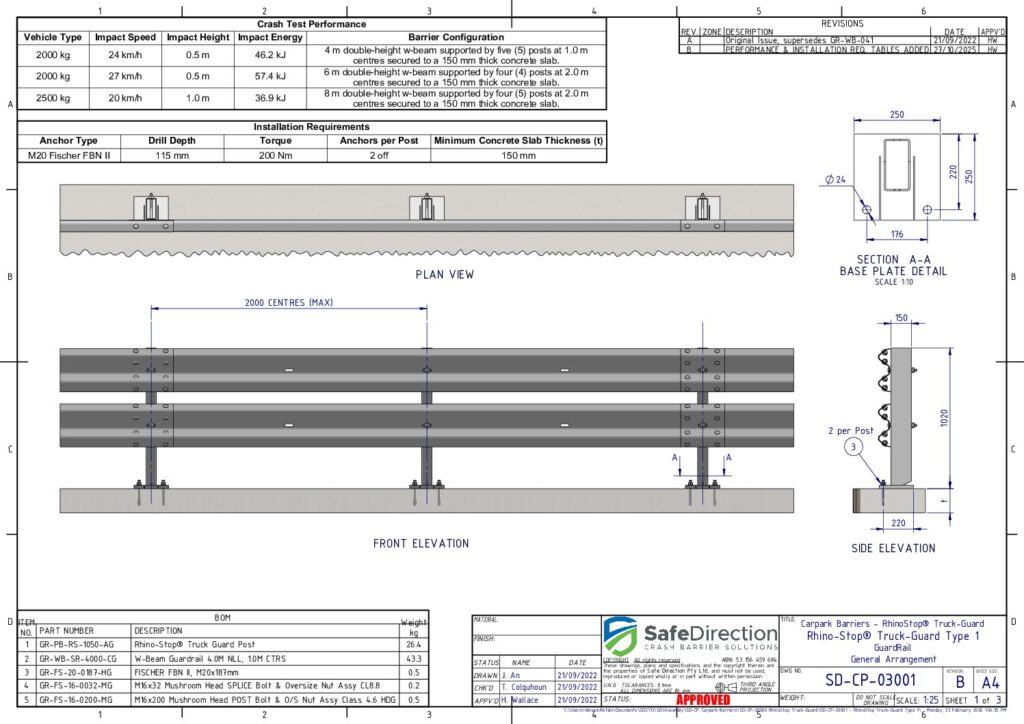

RhinoStop TruckGuard features double height w-beam guardrails supported by heavy duty posts designed to withstand impacts from high-centre-of-gravity vehicles. The system height of 1.0 m improves visibility for truck drivers and forklift operators making it the preferred barrier solution for loading docks, transport logistic warehouses and car parks frequented by heavy vehicles.

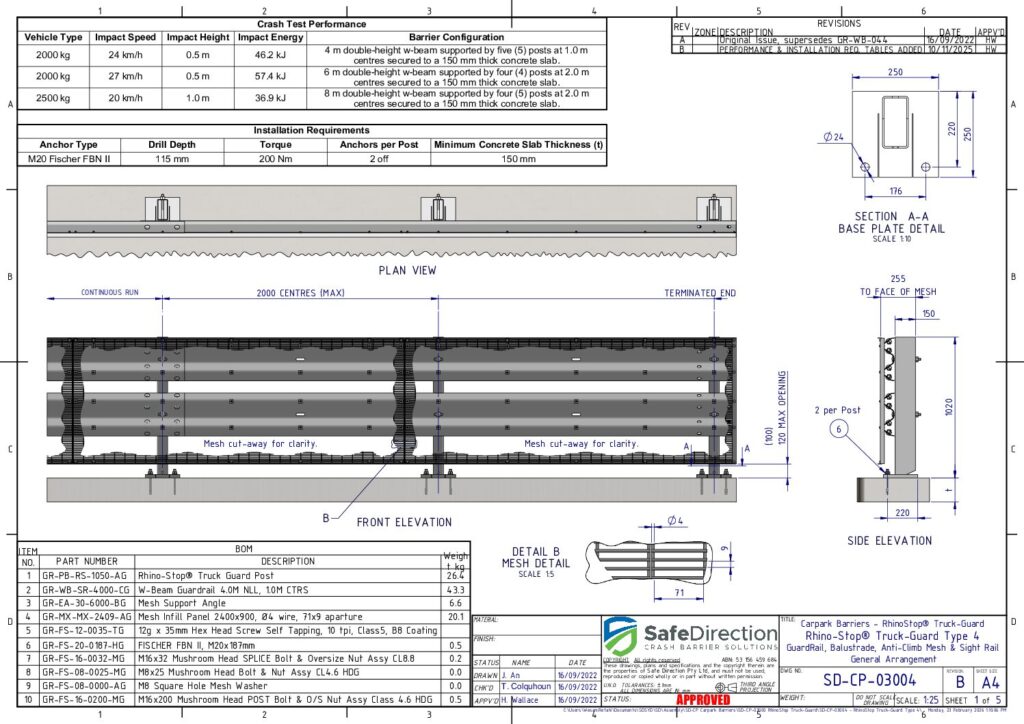

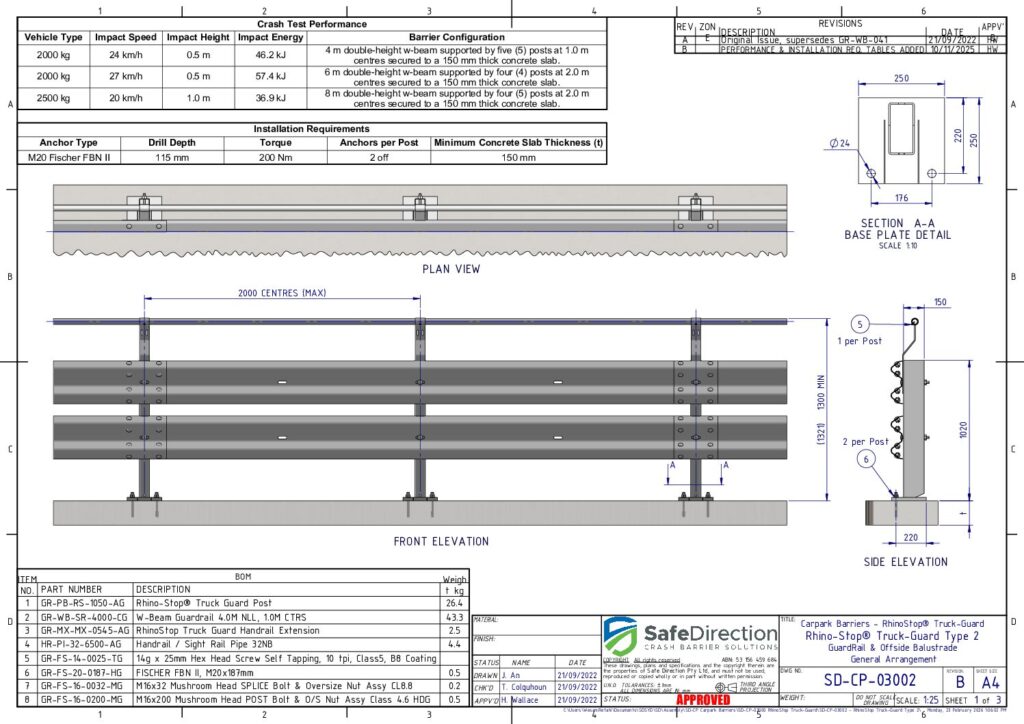

RhinoStop TruckGuard may be configured with handrail and mesh infill providing pedestrian fall protection. The fully modular system uses off-the-shelf components facilitating rapid supply and installation and can be customised on site to suit specific project dimensions.
Crash Test Evaluation
Vehicle Type
Vehicle Mass
impact speed
impact Height
impact angle
impact energy
Barrier Configuation
4 m double-height w-beam supported by five (5) posts at 1.0 m centres secured to a 150 mm thick concrete slab.
6 m double-height w-beam supported by four (4) posts at 2.0 m centres secured to a 150 mm thick concrete slab.
8 m double-height w-beam supported by five (5) posts at 2.0 m centres secured to a concrete slab
Vehicle Type
Vehicle Mass
impact speed
impact height
impact angle
Impact Energy
Barrier Configuation
4 m double-height w-beam supported by five (5) posts at 1.0 m centres secured to a 150 mm thick concrete slab.
Vehicle Type
Vehicle Mass
impact speed
impact Height
impact angle
impact energy
Barrier Configuation
6 m double-height w-beam supported by four (4) posts at 2.0 m centres secured to a 150 mm thick concrete slab.
Vehicle Type
Vehicle Mass
impact speed
impact Height
impact angle
impact energy
Barrier Configuation
8 m double-height w-beam supported by five (5) posts at 2.0 m centres secured to a concrete slab
Installation
Anchor Type
Drill Depth
Torque
Anchors per Post
Min. Concrete Slab Thickness
M20 Fischer FBN II
115 mm
200 Nm
2 off
150 mm
Anchor Type
M20 Fischer FBN II
Drill Depth
115 mm
Torque
200 Nm
Anchors per Post
2 off
Min. Concrete Slab Thickness
150 mm
Product Features
Australian Standard Compliant
Exceeds ALL impact conditions nominated in AS/NZS 1170.1, Clause 3.8.
High Energy Performance
Demonstrated containment of a 2,000 kg pick-up truck travelling at 27 km/h.
Energy Absorbing
The yielding of the baseplate allows the system to deflect and absorb higher impact loads.
Reduced Anchor Loading
Nil damage to the anchors or 150 mm thick elevated slab following crash testing.
Australian Designed
Intellectual property developed and owned by Safe Direction.
Product Gallery
Downloads
Product Manual

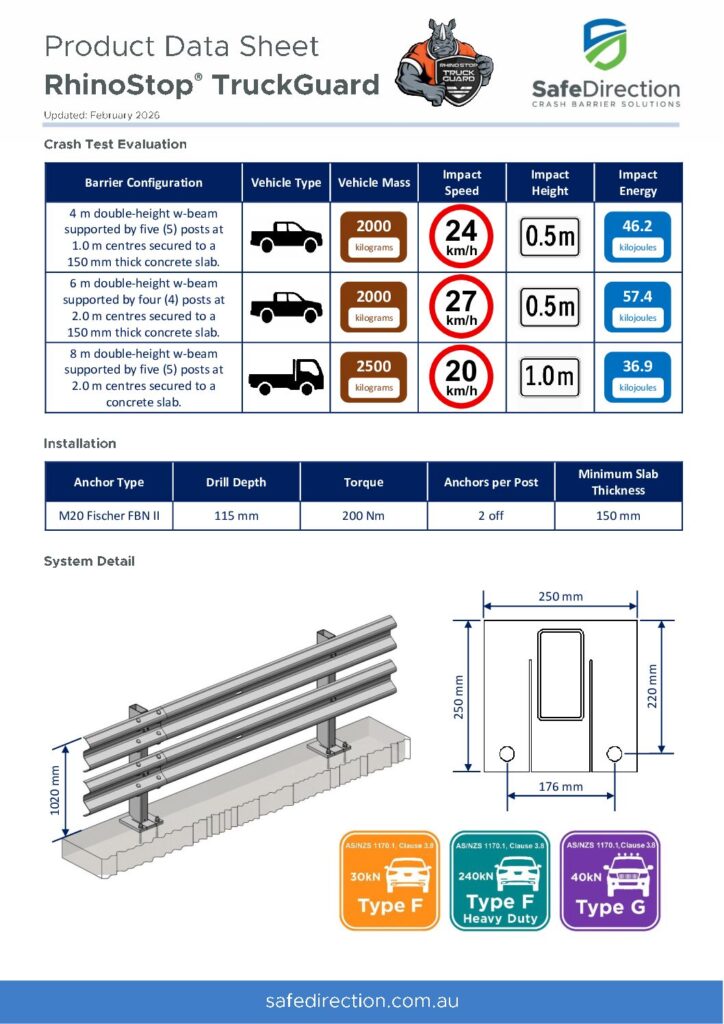

Product Data Sheet
Technical Directorates
Related Products
Combining the strength of w-beam guardrail with energy absorbing posts, absorbing vehicle impact energy and reducing the peak loads transferred to the anchor bolts.
Architectural excellence. RhinoStop Elite is the benchmark in modular car park safety barriers combining vehicle impact containment with pedestrian fall protection.
RhinoStop Heavy Duty is designed to withstand high speed impacts up to 30km/h typically encountered at the ends of ramps and straight aisles in car parking areas.
Can be configured to a system height of up to 2.5m. The preferred barrier on the upper deck of multi-storey car parks or in parking areas adjacent to critical infrastructure.
The unique design of RhinoStop SkyEdge positions the crash barrier on the outer edge of the car park deck preserving valuable car parking space.
Frequently Asked Questions
How does RhinoStop TruckGuard work?
The yielding behaviour of the RhinoStop TruckGuard baseplate absorbs vehicle impact energy, reducing the peak loads transferred to the anchor bolts. The deflection of the system allows for greater load transfer to the adjacent posts, sharing the impact load from the vehicle.
What is Type G, 40 kN as referenced in AS/NZS 1170.1.
AS/NZS 1170.1 states that barriers installed in medium traffic areas are required to withstand a horizontal load of 40 kN. This impact force shall be distributed over a 1.5 m length at any position along the barrier and shall be assumed to act at 1.0 m above floor level. The 40 kN impact load is derived from a 2000 kg vehicle travelling at 2 m/s (7.2 km/h).
Why is RhinoStop TruckGuard superior to other crash barrier systems?
RhinoStop TruckGuard featuring energy-absorbing posts at 2.0 m centres has been crash tested to comply with ALL impact load conditions nominated in AS/NZS 1170.1, Clase 3.8. These crash tests include an impact with a 2000 kg dual cab utility vehicle travelling at 27 km/h and impacting the barrier at a height of 500 mm and a 2500 kg light truck travelling at 20 km/h and impacting the barrier at a height of 1.0 m.
How is RhinoStop TruckGuard able to withstand these high energy impacts?
RhinoStop TruckGuard features specially engineered, energy absorbing posts on baseplates. The RHS post section increases torsional strength, and the yielding baseplate reduces the peak loads transferred to the anchor bolts. The deflection of the w-beam guardrails absorbs vehicle impact energy, allowing the system to withstand higher speed collisions.
Is RhinoStop TruckGuard suitable for pedestrian areas?

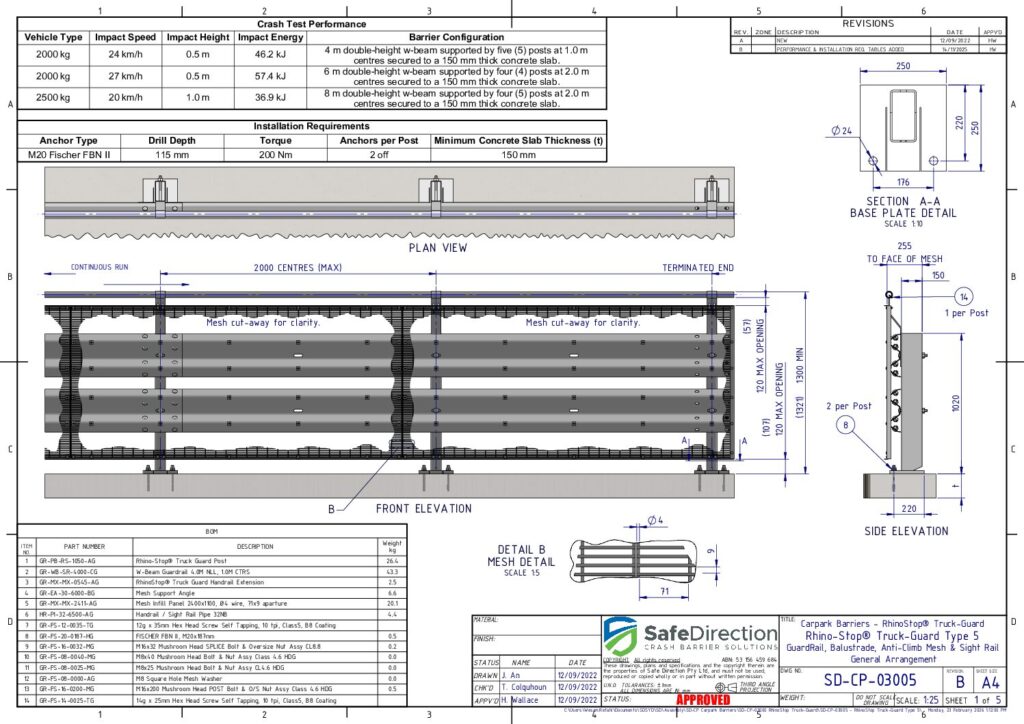

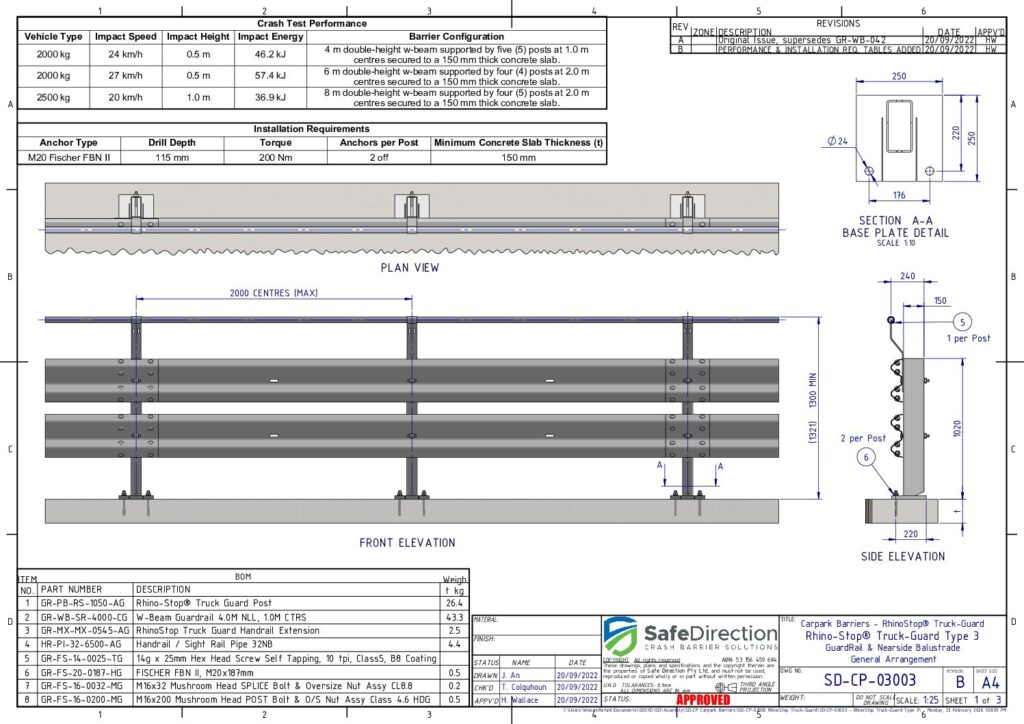

Yes, the modular design of RhinoStop TruckGuard can be assembled with a pedestrian handrail and mesh infill panels.
Can RhinoStop TruckGuard be installed in a multi-storey car park?
Yes, RhinoStop TruckGuard has been full-scale crash tested when installed on a 150 mm thick elevated concrete slab representing an elevated car park. This crash test configuration is designed to evaluate vehicle impact behaviour and the suitability of the anchor embedment depth.
What other applications are suitable for the installation of RhinoStop TruckGuard?
RhinoStop TruckGuard is suitable for installation in warehouses, freight terminals, factories and industrial sites. The use of double height w-beam guardrail positioned 1.0 m above ground level enhances the visibility of the barrier for truck drivers. The use of double height w-beam guardrail also caters for varying vehicle types.
How is RhinoStop TruckGuard installed?
The RhinoStop TruckGuard posts are designed to be attached to a concrete slab. Each post is secured with two (2) M20 anchor bolts.
How is RhinoStop TruckGuard manufactured?
RhinoStop TruckGuard is an all-steel construction. The posts and w-beam guardrails are hot dipped galvanised enhancing durability.

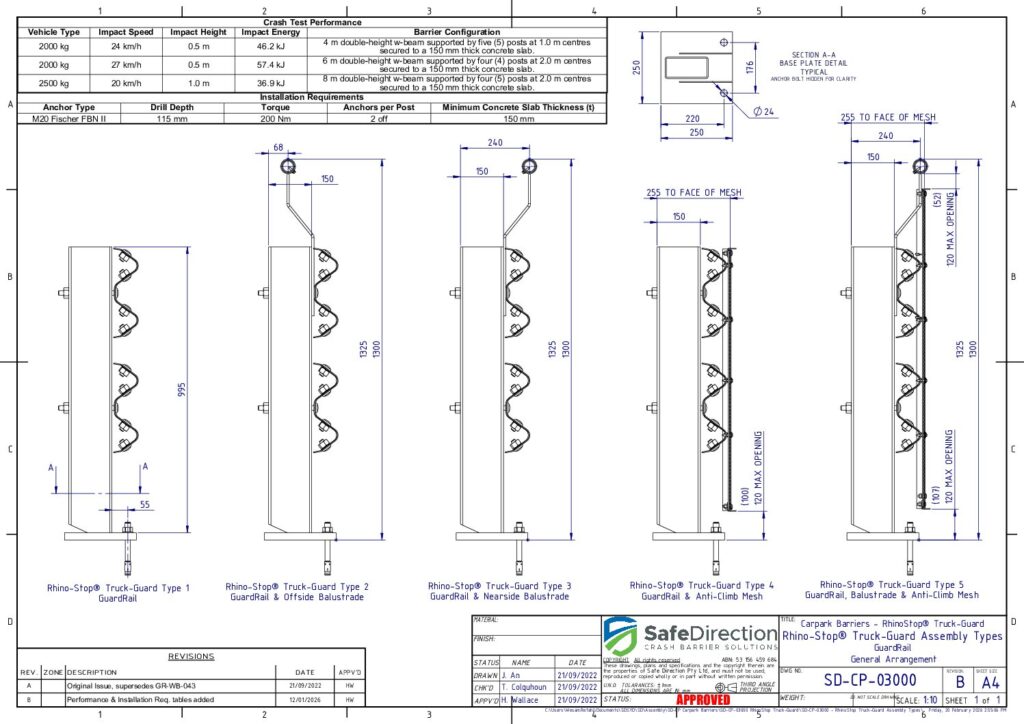

What is the installed height of the twin double w-beam guardrails?
The lower w-beam guardrail is installed at a height of 610 mm above ground level, measured to the top of the beam. This is the same w-beam guardrail height adopted for RhinoStop standard and RhinoStop Heavy Duty. The upper w-beam guardrail is installed at a height of 1020 mm above ground level, measured to the top of the beam.
