Wheel Stops

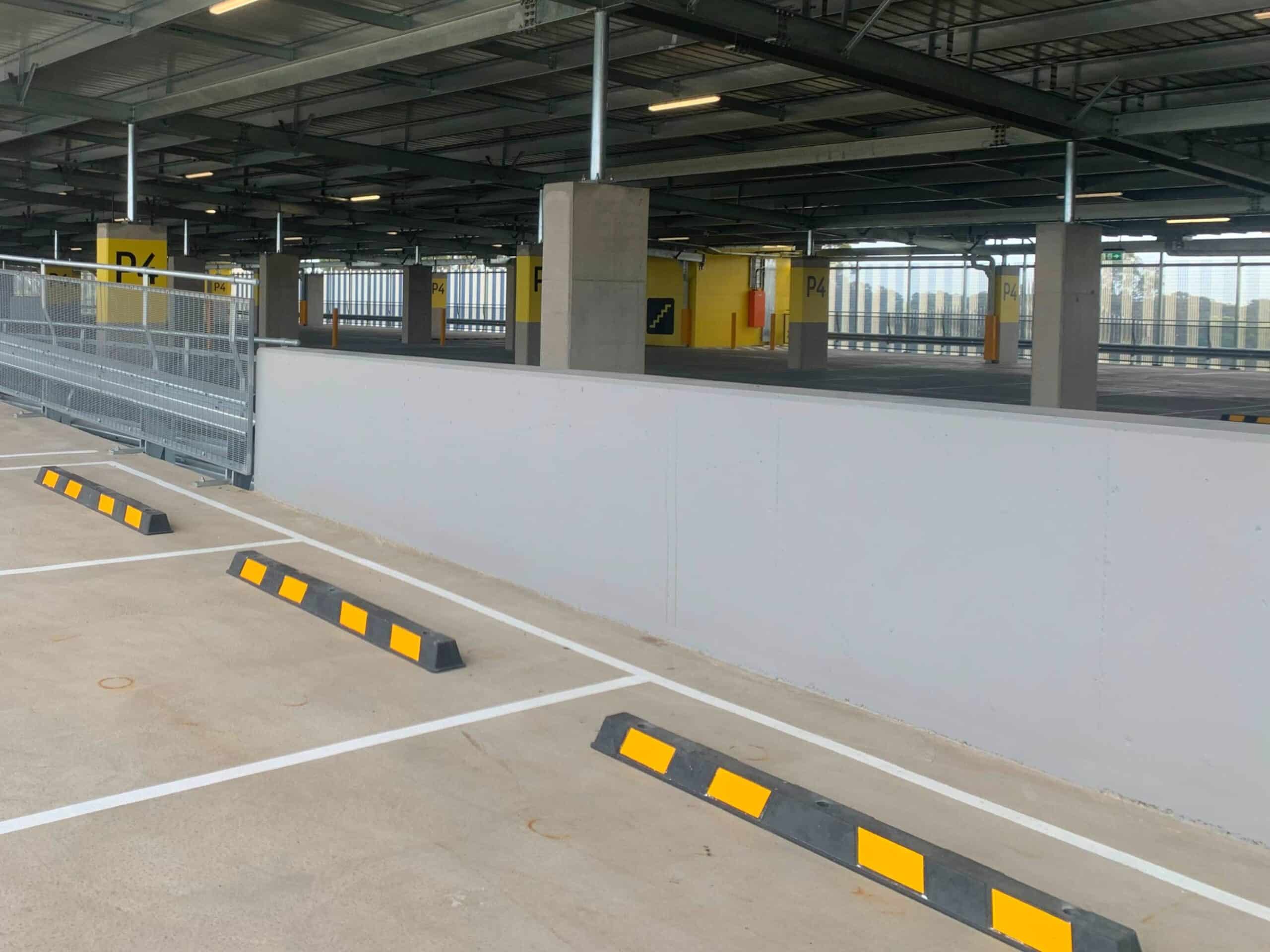

Wheel stops are often installed at the end of a car parking spacing preventing nuisance impacts with other vehicles or other obstacles at the end of the parking space. Rubber wheel stops are an economical solution and may be anchored to concrete or asphalt. The attachment of reflective tape provides high visibility for both motorists and pedestrians.
Wheel stops may be secured to asphalt with pins and to concrete with expansion anchors facilitating rapid installation. Wheel stops may be installed in combination with RhinoStop crash barriers preventing nuisance impacts with the barrier system.
Product Features
Australian Standard Compliant
Compliant to AS/NZS 2890.1: Parking Facilities – Off-Street Car Parking
Durable
Tough one-piece design with yellow hazard-look reflective bead tap
Easy to Install
Suitable for use on gravel, asphalt, bitumen and other hard surfaces.
Lightweight
Just 14 kg per wheel stop
Product Gallery
Downloads

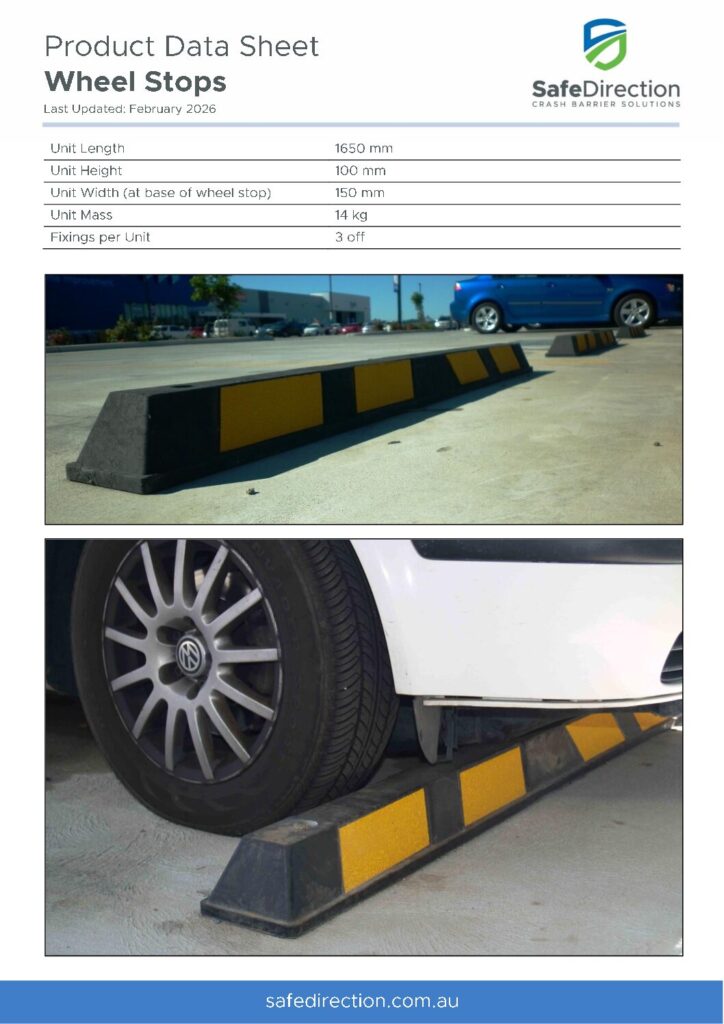

Product Data Sheet
Related Products
Combining the strength of w-beam guardrail with energy absorbing posts, absorbing vehicle impact energy and reducing the peak loads transferred to the anchor bolts.
Architectural excellence. RhinoStop Elite is the benchmark in modular car park safety barriers combining vehicle impact containment with pedestrian fall protection.
RhinoStop Heavy Duty is designed to withstand high speed impacts up to 30km/h typically encountered at the ends of ramps and straight aisles in car parking areas.
RhinoStop TruckGuard features double height w-beam guardrails supported by heavy duty posts designed to withstand impacts from high-centre-of-gravity vehicles.
Can be configured to a system height of up to 2.5m. The preferred barrier on the upper deck of multi-storey car parks or in parking areas adjacent to critical infrastructure.
The unique design of RhinoStop SkyEdge positions the crash barrier on the outer edge of the car park deck preserving valuable car parking space.
Frequently Asked Questions
What is the purpose of a wheel stop?
Wheel stops are used to limit the travel of vehicles when manoeuvring into a parking space.
When should a wheel stop be provided?
Wheel stops are recommended wherever there is a drop of 150 mm to 600 mm to a lower level. They are also recommended in front of barriers to prevent nuisance impacts.
Can a wheel stop be relied upon to stop an errant vehicle?
No. A wheel stop is not a safety barrier and cannot be relied upon to stop an errant vehicle.
When should I avoid using wheel stops?
Wheel stops should be avoided in any situation where they may be in the path of pedestrians or wheelchairs moving to or from parked vehicles or crossing a car park for any other purpose.
What are the dimensions of each wheel stop?
Safe Direction wheel stops are 1650 mm long and 100 mm high. The width at the base of the wheel stop is 160 mm. These dimensions comply with the requirements of AS/NZS 2890.1.
How many anchor points does each wheel stop require?
Each wheel stop is secured with three (3) anchors.
How are the wheel stops secured to a concrete pavement?
When installed in concrete, M16 x 140 mm expansion anchors are used.
How are the wheel stops secured to an asphalt pavement?
For installation in asphalt, M12 x 360 mm spikes are recommended.
What is the weight of each wheel stop?
Each wheel stop weighs 14 kg.
What are the wheel stops made from?
Safe Direction wheel stops are manufactured from durable rubber and feature reflective yellow tape that is highly visible to both motorists and pedestrians.
