RamShield Median W-Beam
RamShield Median W-Beam is a back-to-back guardrail system providing safe vehicle containment and redirection when impacted from either side of the system. Designed for narrow medians and the prevention of dangerous head-on collisions, RamShield Median W-Beam introduces patented technology into the rail release mechanism. This results in low deflection and fewer components. The rail splices of RamShield Median W-Beam are positioned mid-span between posts, providing ease of access for installation contractors and facilitating rapid assembly.
Crash Test Evaluation
Barrier Configuation
Vehicle Type
Vehicle Mass
impact speed
impact angle
impact energy
Dynamic Deflection
Posts at 2m Centres
Barrier Configuation
Posts at 2m Centres
Vehicle Type
Vehicle Mass
impact speed
impact angle
impact energy
Dynamic Deflection
Installation
Post Type
Standard Post Spacing
Post Embedment
Beam Type
System Height
Driven Post
2.0 m
890 mm
W-Beam
800 mm
Post Type
Driven Post
Standard Post Spacing
2.0 m
Post Embedment
890 mm
Beam Type
W-Beam
System Height
800 mm
Product Features
MASH TL3 Compliant
Containment of a 2270 kg pickup truck travelling at 100 km/h and 25 degrees.
Low Dynamic Deflection
Suitable for installation in narrow medians.
Narrow Design
No blocking pieces are required.
Australian Designed
Intellectual property developed and owned by Safe Direction.

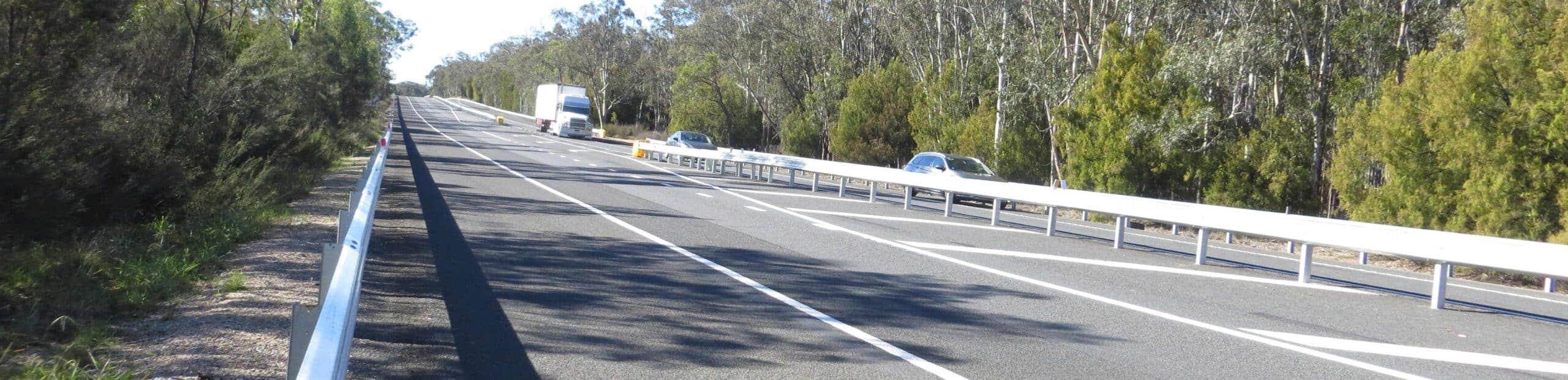

Product Gallery

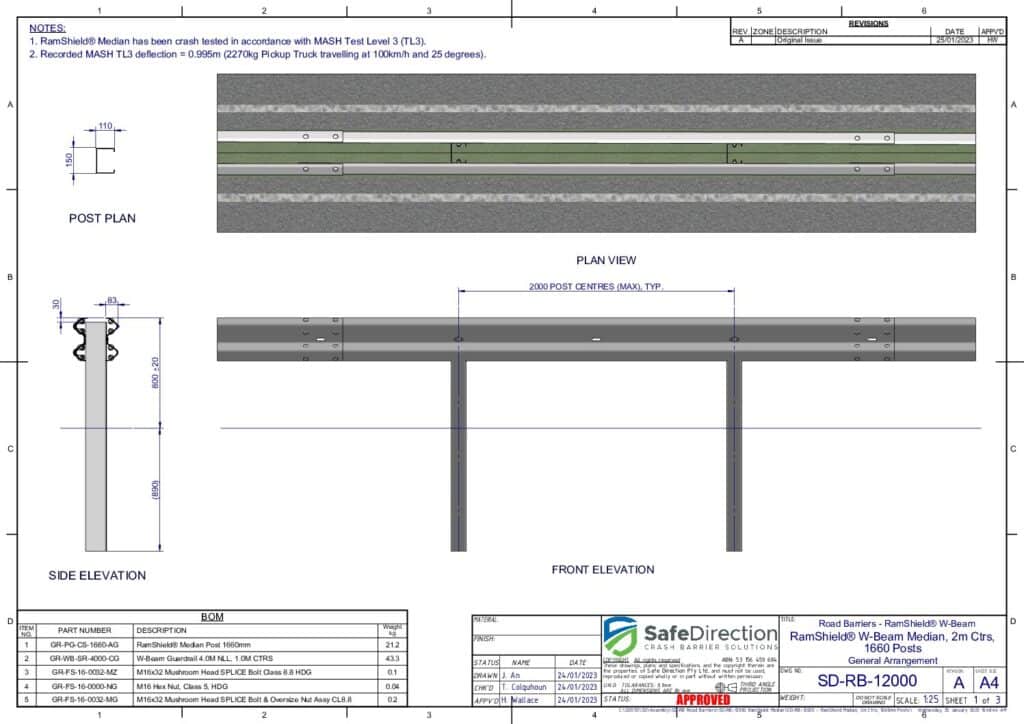

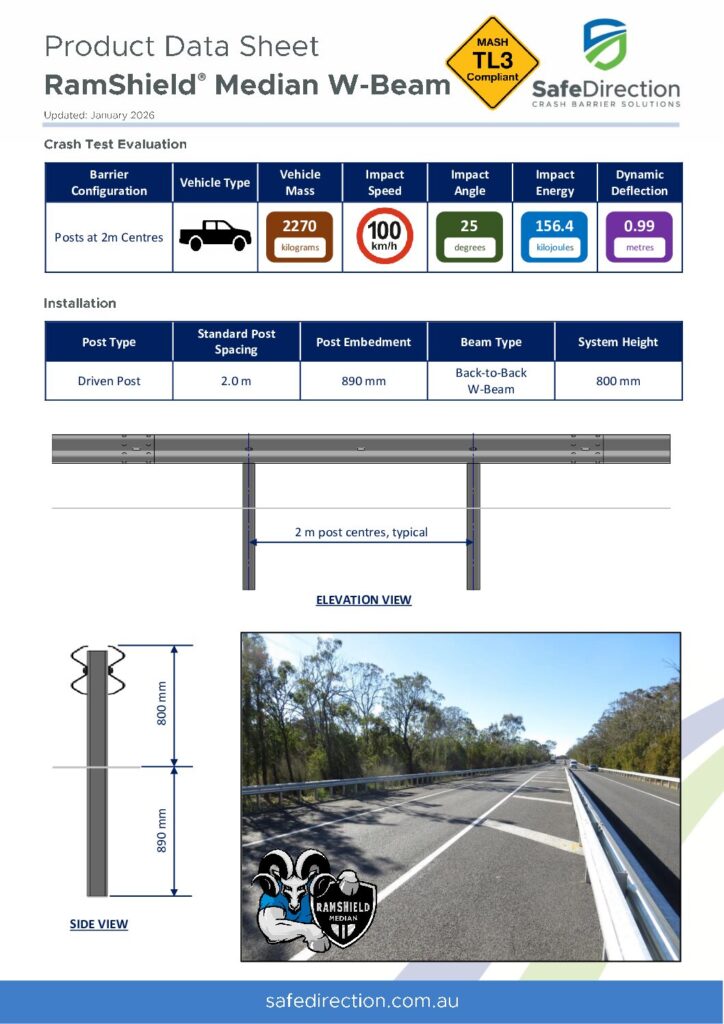

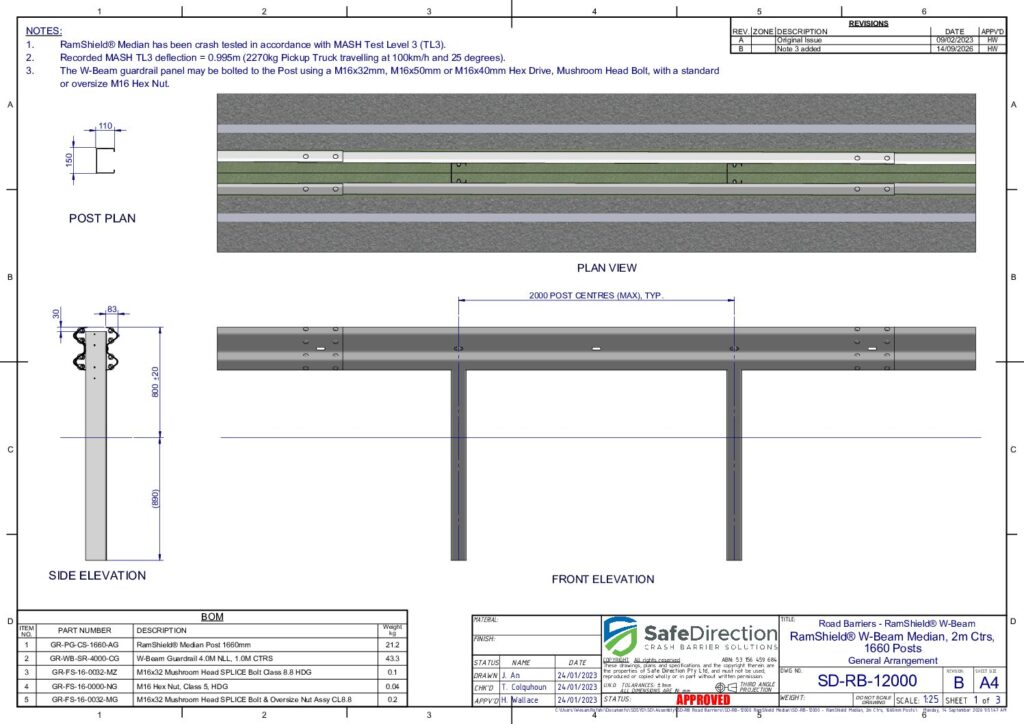

Downloads
Related Products
BikerShield Motorcycle Protection Barrier provides safe rider containment and redirection through the combination of spring mounting brackets and lightweight, corrugated panels.
The Gregory Median End Terminal (GMET) is an energy-absorbing median guardrail end terminal, designed to minimise the severity of impacts occurring at the end of the guardrail safety barrier system.
Frequently Asked Questions
What is a roadway median?
The median is the strip of roadway or land that separates opposing directions of traffic on a divided highway or road.
What is the purpose of the median?
The main purpose of the median is to improve safety by reducing the potential for head-on collisions and managing turning movements.
What is a median safety barrier?
A median safety barrier system is designed to provide vehicle containment and redirection when impact from either side of the barrier. These barriers are used in narrow medians to reduce the potential for head-on collisions.
How does RamShield Median W-Beam work?
RamShield Median W-Beam achieves a controlled redirection of errant vehicles by releasing the w-beam guardrail from the post at an optimal load to retain rail height, limit dynamic deflection and to allow the post to collapse without tripping the vehicle. The separation of the w-beam guardrail from the post is achieved by a release tab punched into the post.Â
RamShield Median W-Beam uses standard w-beam guardrails and standard guardrail fasteners.
What is the containment level of RamShield Median W-Beam?
RamShield Median W-Beam has been crash tested in accordance with MASH Test Level 3 (TL3).
What is the impact performance of RamShield Median W-Beam?
The maximum dynamic deflection of RamShield W-Beam during MASH TL3 crash testing was 0.99 m. This result was recorded during an impact with a 2270 kg pick-up truck travelling at 100 km/h and 25 degrees. Â
What is the system width of RamShield Median W-Beam?
The system width of RamShield Median W-Beam is just 320 mm making it ideal for installation in narrow medians.
What guardrail end terminal is compatible with RamShield Median W-Beam?

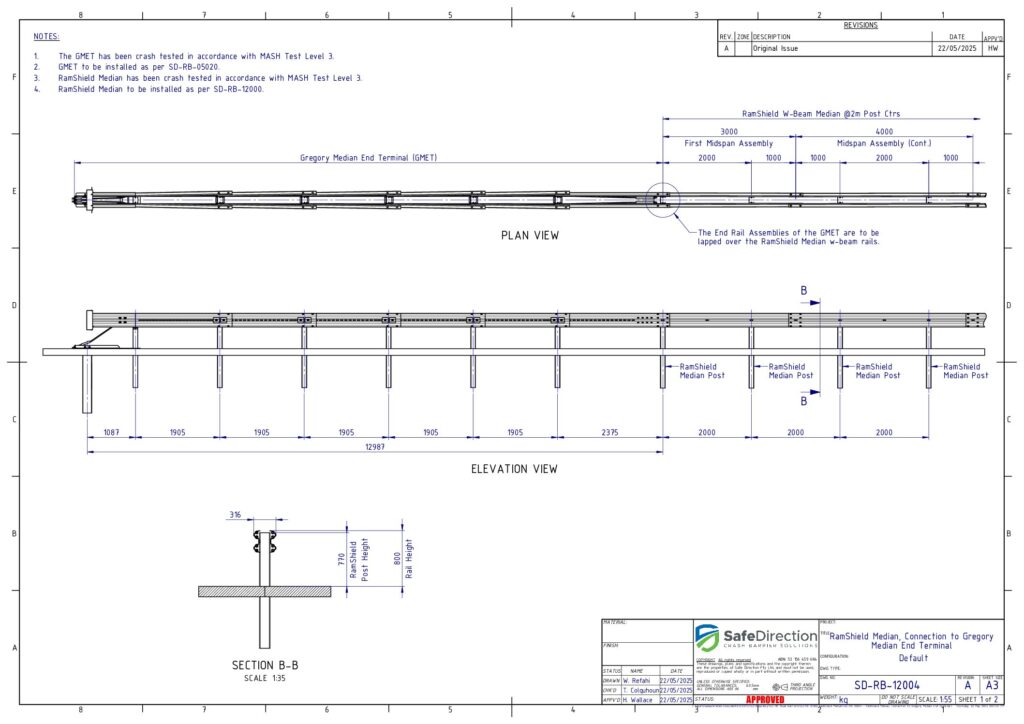

The Gregory Median End Terminal (GMET) is a back-to-back w-beam terminal, designed for direct attachment to RamShield Median w-beam guardrail and reduce the severity of impacts occurring at the end of the RamShield Median W-Beam system.
Is a transition required when connecting the GMET to RamShield Median W-Beam?
No. The system width of the GMET and RamShield Median W-Beam are identical featuring back-to-back w-beam guardrail connected directly to C-posts.
Can RamShield Median W-Beam be installed with a motorcycle protection barrier?

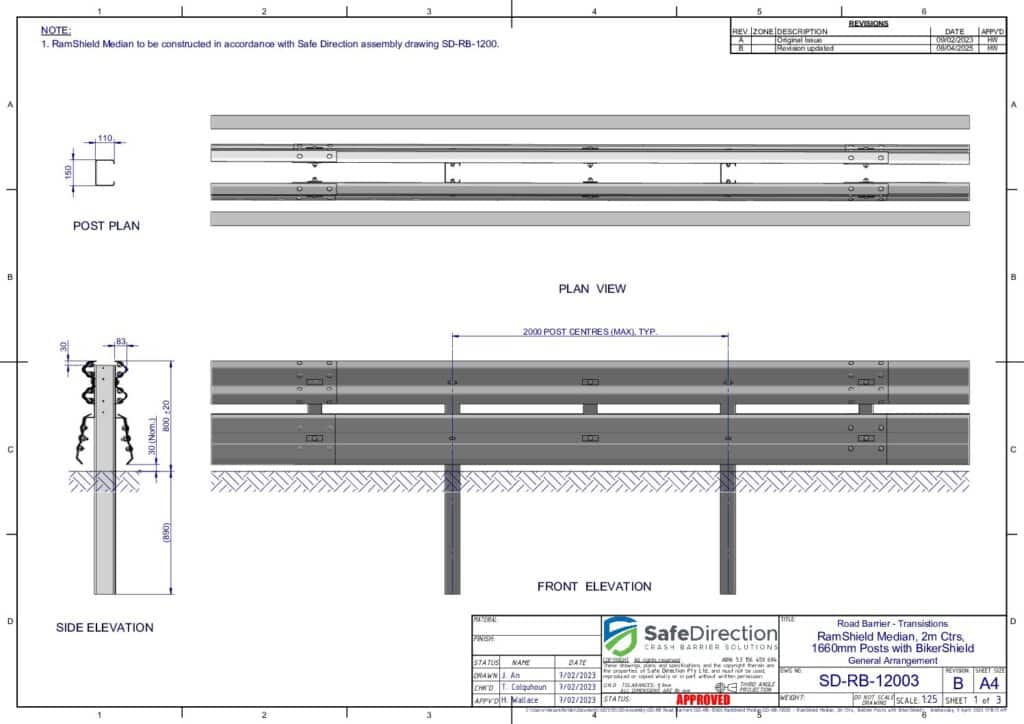

Yes. RamShield Median W-Beam may be installed with BikerShield which is positioned beneath the w-beam guardrail and prevents a dismounted motorcyclist from contacting the supporting posts of the guardrail barrier. The BikerShield spring brackets attach directly to the w-beam mid-span between posts and absorb the impact energy of the sliding rider. Please refer to the Product Manual and Drawings for design guidance.
