Column Guards

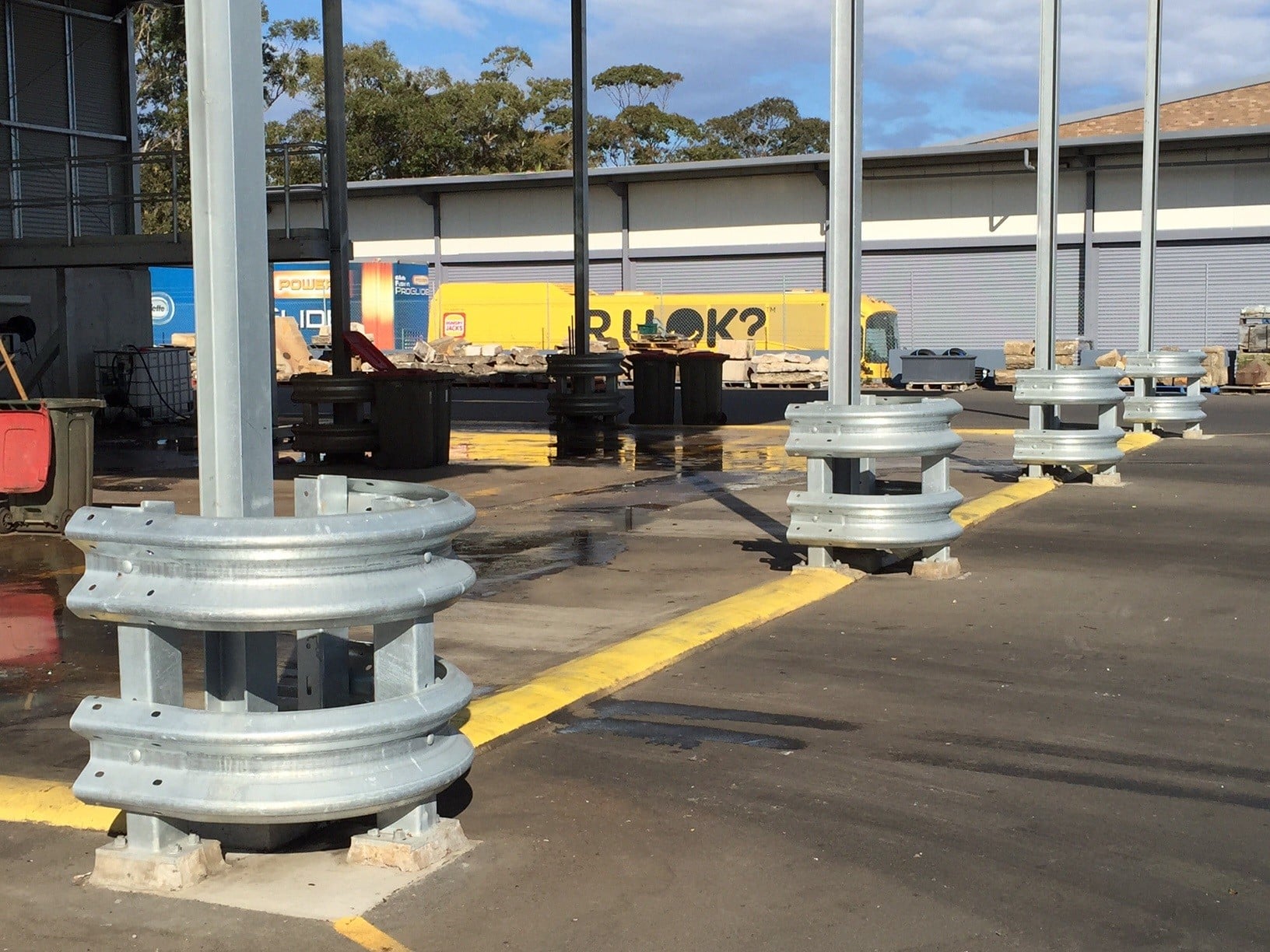

Column Guards are used to shield valuable plant and equipment throughout the warehouse and prevent accidental damage. Featuring w-beam guardrail, column guards may be configured in half-circle or full-circle protection and feature single or double w-beam guardrails. The option of powder coating enhances visibility and alerts the driver of machinery to the nearby hazard.
Product Features
Protecting Valuable Assets

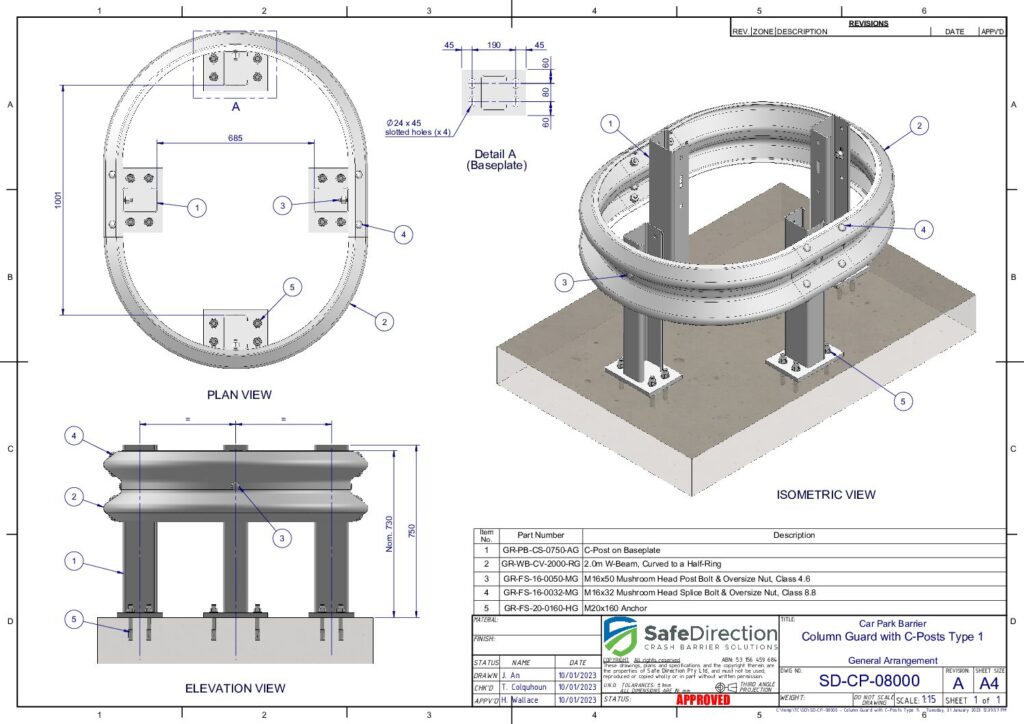

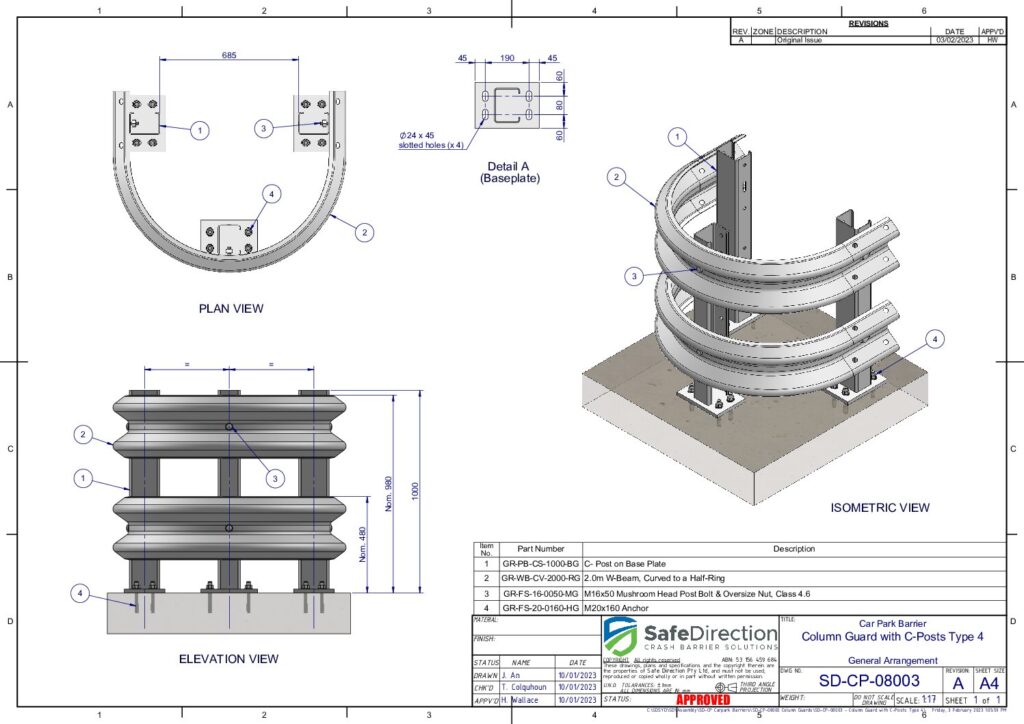

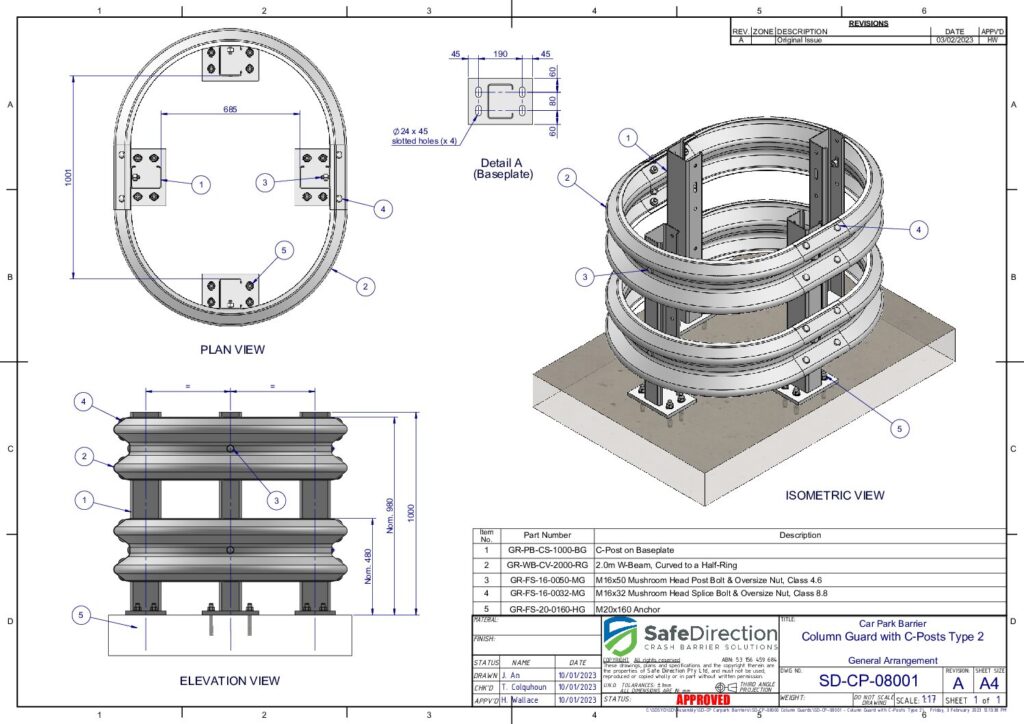

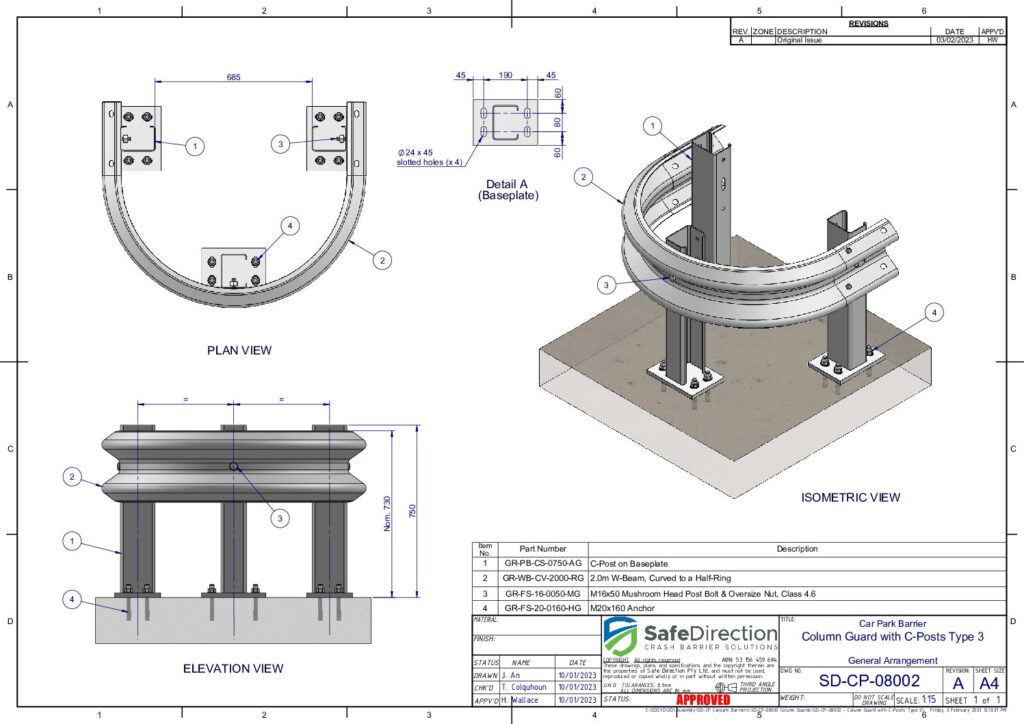

Can be configured as half-circle or full-circle.
Durable
Uses the strength of w-beam guardrails.
Adaptable
Can be configured with single-height or double-height w-beam guardrail.
Visible
Option of powder coating the w-beam guardrails.
Product Gallery
Downloads

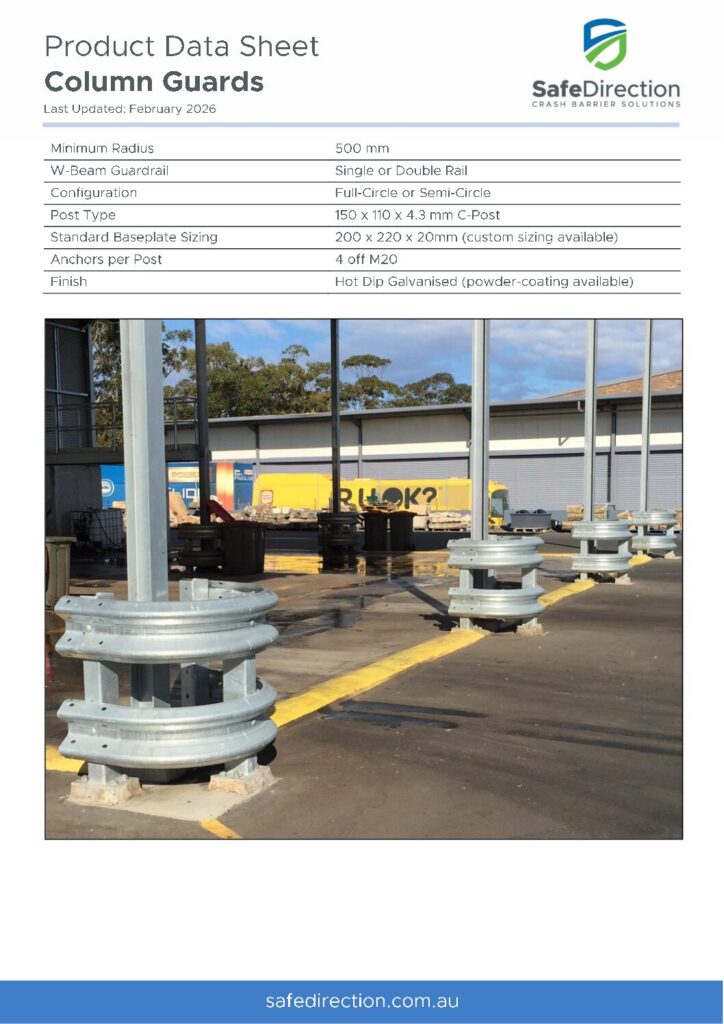

Product Data Sheet
Technical Directorates
Related Products
Combining the strength of w-beam guardrail with energy absorbing posts, absorbing vehicle impact energy and reducing the peak loads transferred to the anchor bolts.
RhinoStop Elite is the benchmark in modular warehouse safety barriers combining vehicle impact containment with pedestrian fall protection.
RhinoStop Heavy Duty is the preferred warehouse barrier system to withstand impacts from forklift trucks and heavy mobile machinery.
The system height of 1.0 m improves visibility for truck drivers and forklift operators making it the preferred barrier for loading docks and transport logistic warehouses.
Standing up to 2.5m high, RhinoStop Screen is the preferred crash barrier solution to shield pathways adjacent to pallet racking or areas where stock items are stacked vertically.
The alignment of the w-beam guardrail with the edge of the deck ensures the barrier does not encroach into valuable factory or warehouse space.
Frequently Asked Questions
How do Column Guards function?
Column Guards feature posts with base plates supporting w-beam guardrail. They are design to protect columns from accidental impacts.
What are the available configurations?
Column guardrail may be installed as full ring or semi-circle barriers. W-beam guardrail may be installed as single or double height barrier.
What is the minimum curvature for w-beam guardrails?
Safe Direction can curve guardrails to a 500 mm radius.
How many anchor bolts does each post require?
Typically, each post is anchored with four (4) M20 anchor with a typical embedment depth of 105mm.
What is the finish of Column Guards?
Column Guard posts and w-beam guardrails are hot dip galvanised. Powder-coating of w-beam guardrails is an optional extra.
