HERCULES MASH TL3 Crash Cushion

Hercules is a MASH TL3 compliant crash cushion designed to shield the blunt ends of concrete barriers and other hazards. Featuring an all-steel construction, Hercules is supplied as a pre-assembled unit to facilitate rapid installation, limiting the time workers spend on the roadside and minimising disruption to traffic.

The MASH TL3 Hercules is 5.9m long and measures just 590mm wide making it ideal for narrow medians. Hercules is fully re-directive and non-gating, providing safe vehicle containment and ride-down decelerations.

Mash 3 Compliant-02

Features

Crash test evaluation:

  • 1100kg Passenger Car travelling at 100km/h & 0 degrees, Nose (MASH 3-30)
  • 2270kg Pick-up Truck travelling at 100km/h & 0 degrees, Nose (MASH 3-31)
  • 1100kg Passenger Car travelling at 100km/h & 15 degrees, Nose (MASH 3-32)
  • 2270kg Pick-up Truck travelling at 100km/h & 15 degrees, Nose (MASH 3-33)
  • 1100kg Passenger Car travelling at 100km/h & 15 degrees, Side-on (MASH 3-34)
  • 2270kg Pick-up Truck travelling at 100km/h & 25 degrees, Side-on (MASH 3-35)
  • 2270kg Pick-up Truck travelling at 100km/h & 25 degrees, Side-on (MASH 3-36)
  • 2270kg Pick-up Truck travelling at 100km/h & 25 degrees, Reverse (MASH 3-37)

Austroads acceptance:

“Our Company undertakes the repair of existing and installation of new guardrail and pedestrian fencing in the Sydney region.

We use Safe Direction for the supply of the hardware. They are the very best in my view, timely, well organised, conscientious, very easy to deal with and the prices are reasonable.

Orders are ready to pick up in a short time which helps our business because we receive jobs at short notice and need hardware at short notice. Thanks for your help over the years Safe Direction we really appreciate your efforts.”

John Hunt – Hunt Civil P/L

“Safe Direction provides a fantastic service with prompt communication and extensive knowledge of their products and the required specifications.

I would highly recommend Safe Direction for any Roadside or Carpark Barrier enquiries.”

David

HERCULES MASH TL3 FAQs

How does HERCULES Function?

HERCULES captures vehicles impacting the head of the system and brings them to a safe arrest via high energy dissipating crushable elements. Side impacts are controlled by HERCULES with a safe stable redirection of the errant vehicle.

What does non-gating and re-directive mean?

Non-gating and re-directive means that vehicles impacting on the side from the very nose of the system are restrained and redirected along the impacted traffic side of the barrier i.e. they do not break through the head of the system and continue onward towards any opposing hazard.

What crash tests impacts have been performed with HERCULES?

Crash testing on HERCULES has been completed to the rigorous requirements of MASH necessitating a multitude of impacts with small and large vehicles to validates its performance:

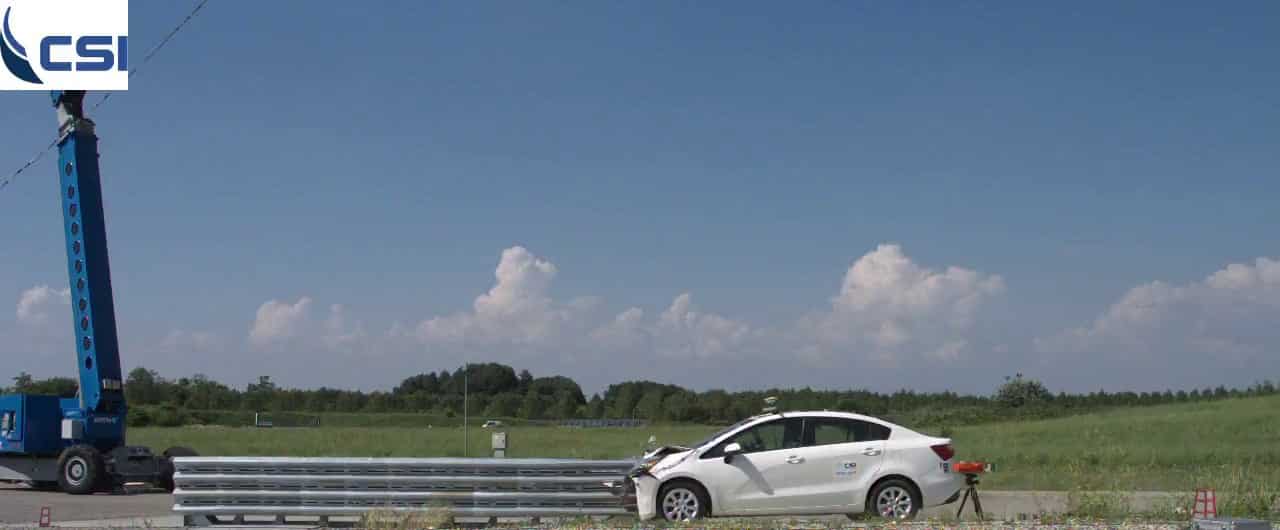

  • Test 3.30, 1100kg sedan, 100km/h, 0 degrees and ¼ offset
  • Test 3.31, 2270kg Pick Up Truck, 100km/h, 0 degrees centre
  • Test 3.32, 1100kg sedan, 100km/h, 15 degrees
  • Test 3.33, 2270kg Pick Up Truck, 100km/h, 15 degrees
  • Test 3.34, 1100kg sedan, 100km/h, 15 degrees Critical Side Impact Point
  • Test 3.35, 2270kg Pick Up Truck, 100km/h, 25 degrees Beginning Length of Need

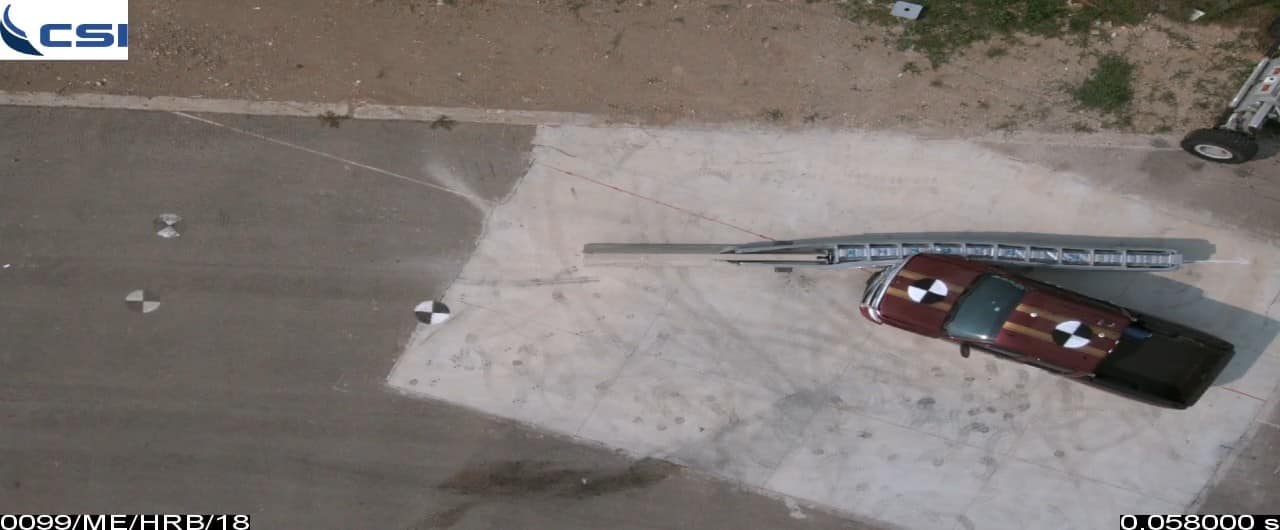

  • Test 3.36, 2270kg Pick Up Truck, 100km/h, 25 degrees Critical Side Impact Point
  • Test 3.37, 2270kg Pick Up Truck, 100km/h, 25 degrees Reverse Critical Side Impact Point
Can HERCULES be repaired?

All elements of the upper construction damaged during impact can be replaced and repaired. The system consists of a repeated modular construction that makes for a simple repair process. Safe Direction® carries a full suite of replacement parts.

Does HERCULES have any parts that have an expiry date from UV deterioration?

HERCULES is an all-steel construction and hence has no plastic components that deteriorate from UV exposure. All components of the HERCULES system are hot-dip galvanised providing the best in class long term durable solution.

Can HERCULES be used to replace other crash cushion systems?

In most instances, HERCULES can swap out other crash terminal systems; contact Safe Direction® for confirmation for individual site applications.
