RHINO-STOP® 240 Guardrail

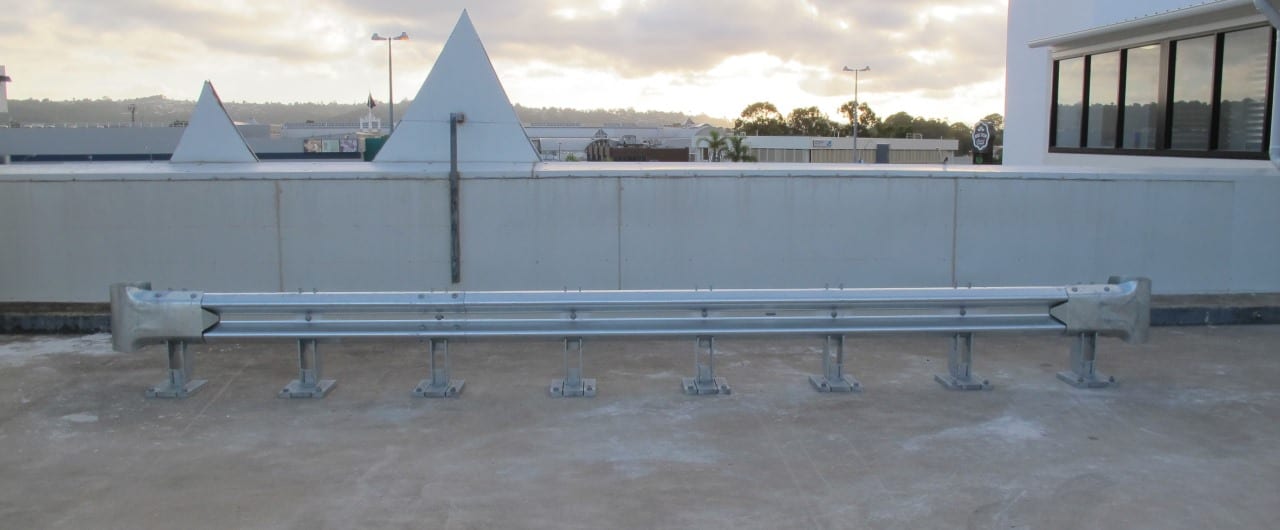

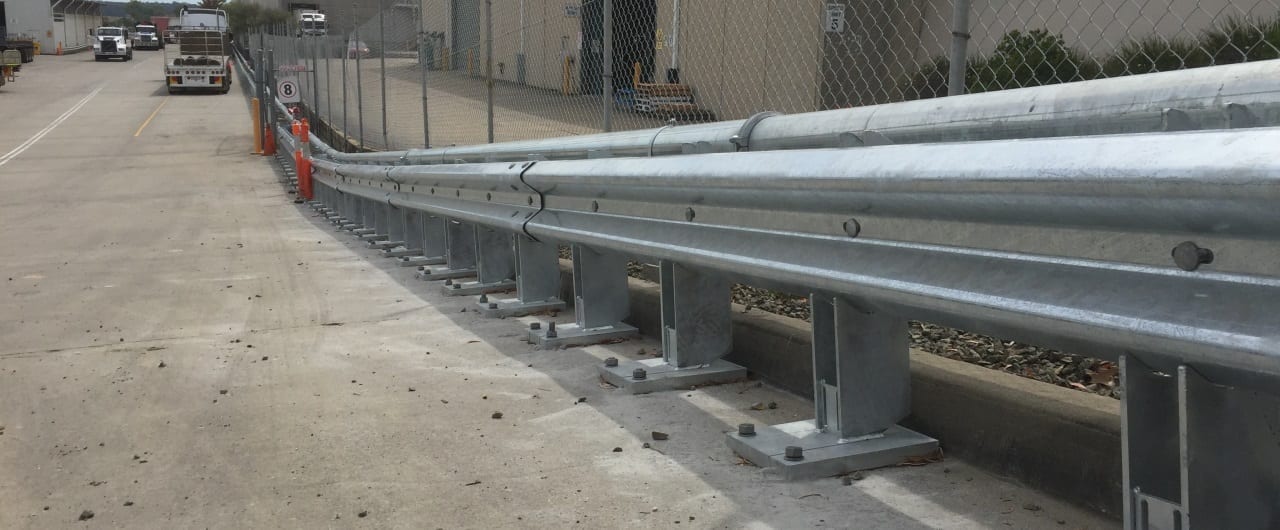

RHINO-STOP® 240 Guardrail provides high-speed vehicle containment, typically encountered at the ends of ramps and straight aisles in car parking areas. These areas are prone to higher vehicle speeds and require a barrier system with increased capacity.

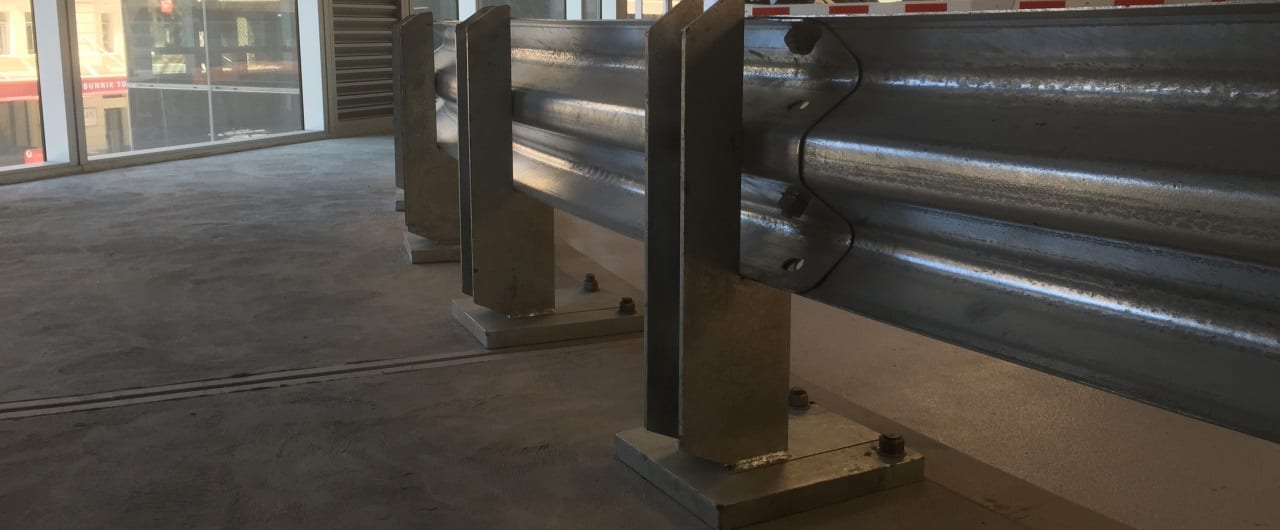

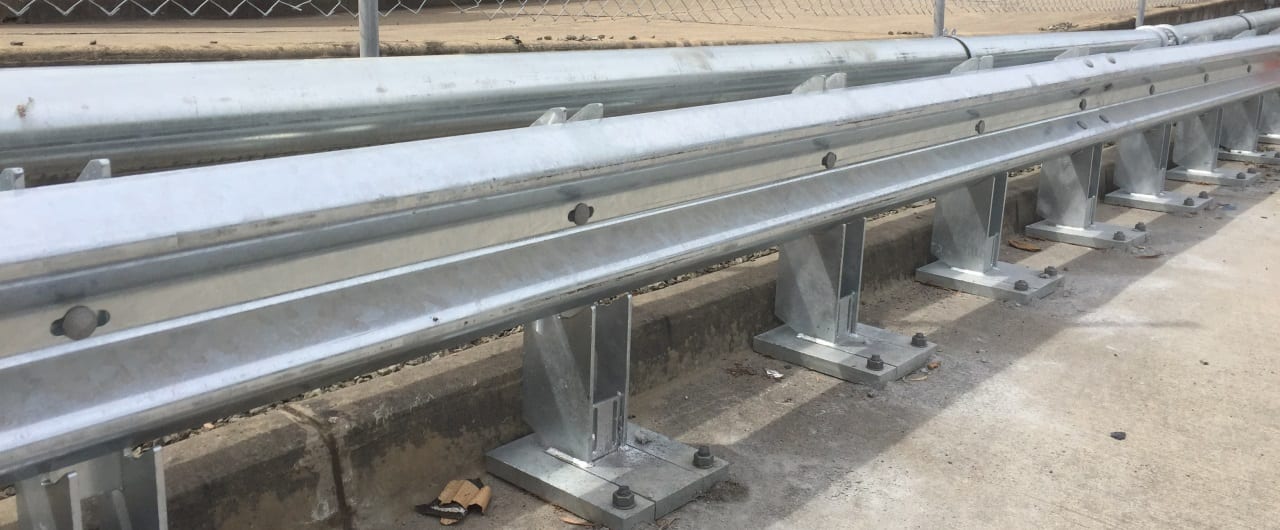

The yielding behaviour of the RHINO-STOP® 240 baseplates absorb vehicle impact energy reducing the peak loads transferred to the anchor bolts. The deflection of the system allows for greater load transfer to the adjacent posts, sharing the impact load from the vehicle.

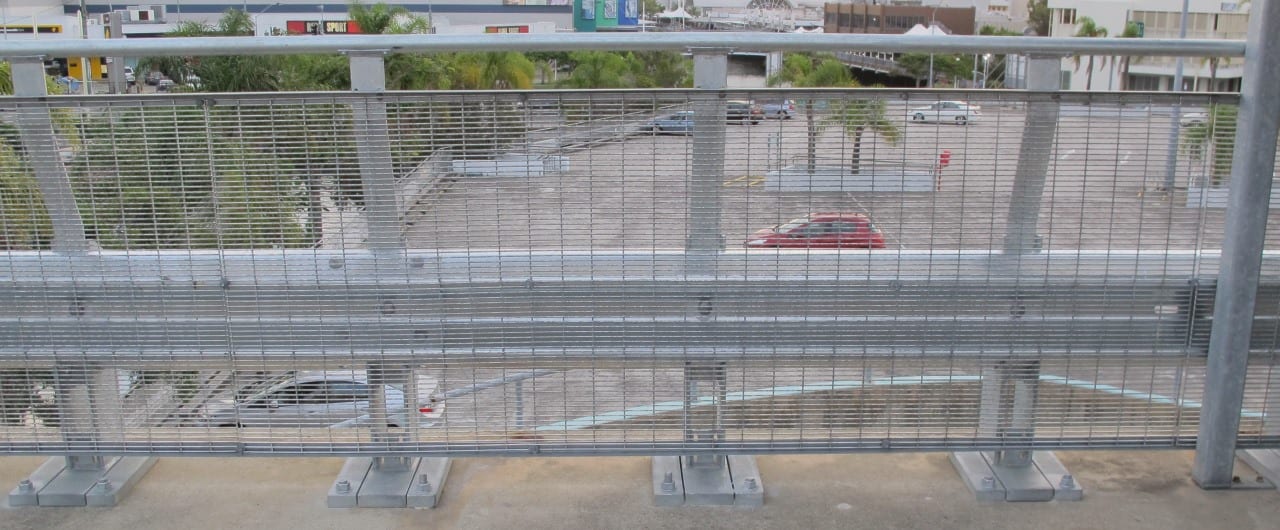

RHINO-STOP® 240 Guardrail may be configured with handrail and mesh infill providing pedestrian fall protection. The fully modular system uses off-the-shelf components facilitating rapid supply and installation and can be customised on site to suit specific project dimensions.

Type F End of Ramp barrier standard
RHINO-STOP® 240

Features

  • Complies with the 240kN vehicle impact load (Type F End of Ramp) described in AS/NZS 1170.1, Clause 3.8
  • Standard post spacing – 800m centres
  • Available with a handrail attachment increasing system height to 1100mm
  • Available with a sight rail attachment increasing system height to 1300mm
  • Available with mesh infill providing pedestrian fall protection
  • Number of anchor bolts per post – 2 off

Crash test evaluation:

  • 2000kg Passenger Car travelling at 30km/h & 90 degrees, impacting 0.5m above ground level

“Our Company undertakes the repair of existing and installation of new guardrail and pedestrian fencing in the Sydney region.

We use Safe Direction for the supply of the hardware. They are the very best in my view, timely, well organised, conscientious, very easy to deal with and the prices are reasonable.

Orders are ready to pick up in a short time which helps our business because we receive jobs at short notice and need hardware at short notice. Thanks for your help over the years Safe Direction we really appreciate your efforts.”

John Hunt – Hunt Civil P/L

“Safe Direction provides a fantastic service with prompt communication and extensive knowledge of their products and the required specifications.

I would highly recommend Safe Direction for any Roadside or Carpark Barrier enquiries.”

David

RHINO-STOP® 240 Guardrail FAQs

How does RhinoStop® 240 work?

All RhinoStop® barriers incorporate a unique patented yielding base plate that minimises the peak loads transferred to the post anchors. The yielding behaviour of the base plate absorbs vehicle impact energy and prevents damage to the concrete substrate.

What Standards were referenced to evaluate RhinoStop® 240?

RhinoStop® 240 has been crash tested to validate compliance with the 240kN (Type F End of Ramp) vehicle impact load described in AS/NZS 1170.1, Clause 3.8.

What crash tests were performed with RhinoStop® 240?

A 1500kg passenger car travelling at 30km/h was impacted on one (1) w-beam guardrail panel supported by six (6) posts. The height of impact was 0.5m above ground level.

What is the minimum number of posts required for a RhinoStop® 240 installation?

A minimum six (6) posts are required per installation when compliance to the 240kN vehicle impact load (Type F End of Ramp) described in AS/NZS 1170.1, Clause 3.8 is required.

What is the spacing between posts?

The spacing between the posts shall not exceed 800mm when compliance to the 240kN vehicle impact load (Type F End of Ramp) described in AS/NZS 1170.1, Clause 3.8 is required.

Can RhinoStop® 240 connect to standard RhinoStop®?

Yes. If the barrier installation extends into an area opposite a down ramp or other high-speed area, the standard RhinoPosts® at 2m centres are substituted with RhinoStop® 240 posts at 800mm centres. The alignment of the w-beam guardrail does not change.

How is RhinoStop® 240 manufactured?

RhinoStop® 240 features an all-steel construction, with hot dip galvanised posts and w-beam guardrails.
